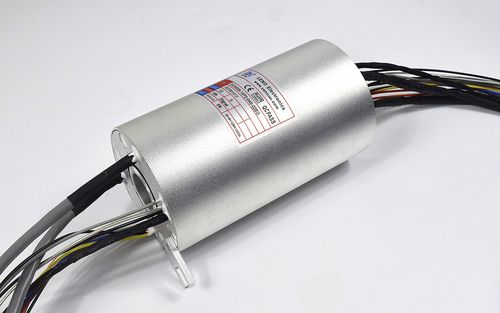

Gigabit Ethernet slip ring ECN025-10P2-04S-02EG

through-boreindustrialaluminum alloy

CENO has developed signal slip ring with Gigabit Ethernet signal character base on market requirement. The Ethernet slip ring comply with EMC compatibility and meet the requirement of Signal impedance matching, to make sure transmission low loss, no error code, long distance transmission. CENO Ethernet slip ring transmission distance could up to 1000Mbps, or over this speed. It could integrate another current and signal into one slip ring for different customer’s requirement. • Current : 10*10A ,4 *signal ,2 *Gigabit Ethernet • Dielectric strength : ≥1000VAC@50Hz(Power) ≥500VAC@50Hz(Signal) • Insulation resistance : - 500MΩ@50VDC(Power) 100MΩ@100VDC(Signal) • Resistance fluctuation : ≦70mΩ (with 50rmb running) • Working temperature : -20℃~+60℃ • Protection grade : IP54 • Humidity : <60%RH • Contact material : Precious metal • Housing material : Aluminum alloy sandblasting oxidation white • Through hole size : 25.4mm • Installation way : Frank
