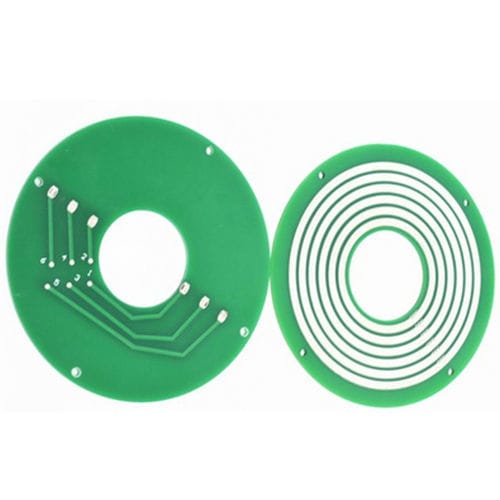

Pancake type slip ring PSCN030-06P

with gold contactsPCB

Separate pancake slip ring belongs to pancake series slip ring. Its outline is different from the integrated pancake slip ring due to the separate structure. It is usually to be required on certain installation space which has no more height room, but normally the the rotation speed is not too fast, like lower than 100RPM.However, CENO also designed some type of separate slip ring for some high speed what higher than 100RPM. • Protection Grade : IP00 • Isolation Resistance : 200MΩ@500VDC • Contact Material : Gold to Gold • Dielectric Strength : ≥500V@50Hz • Lead Wire Size : AWG26#Wire Teflon®UL • Electrical Noise : Max 70mΩ（50rpm） • Lead Wire Length : Rotor:300mm, Stator:300mm • Working Humidity : 60%RH • Rotation Way : PCB board fixed on customers flange • Working temperature : -20℃~+60℃ • PCB : FR-4
