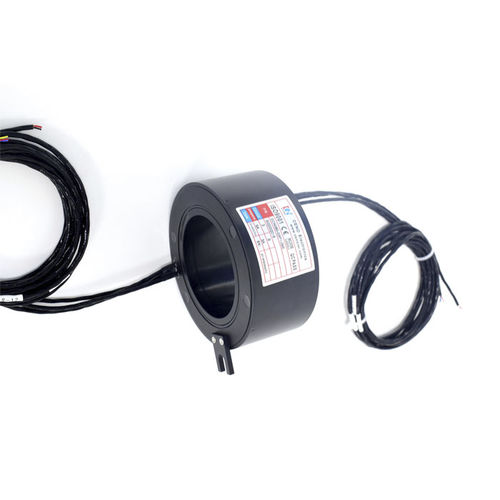

Through-bore slip ring ECN080-03P1-09S
for wind turbinefor generatorsmetal

Through-bore slip ring - ECN080-03P1-09S - CENO Electronics technology Co., Ltd - for wind turbine / for generators / metal
Through-bore slip ring - ECN080-03P1-09S - CENO Electronics technology Co., Ltd - for wind turbine / for generators / metal
Add to favorites
Compare this product

Go to the CENO Electronics technology Co., Ltd website for more information

Characteristics

Construction
through-bore
Applications
for wind turbine, for generators
Material
metal
Other characteristics
IP54, low-temperature
Voltage

380 V

Primary current

5 A

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 100 rpm
(628 rad.min-1)

Number of channels

12 unit

Internal diameter

80 mm
(3.15 in)

Description

Low temperature slip ring could integrate pneumatic ,Hydraulic, fiber optional,RF rotary joint,USB,Ethernet ,etc,. to make sure the signal continuously and stably transmitted from system to the satellite. • Current : 3*5A ,9*signal • Electrical noise : ≤70mΩ (50rpm) • Dielectric strength : ≥1000V@50Hz • Isolation resistance : 500MΩ@300VDC • Through bore size : Ø80mm • Working temperature : -45℃~+80℃ • Contact material : Precious metal
