Power and signal transmission electrical rotary joint SCN360-05P-01S

through-hole2-partcustom

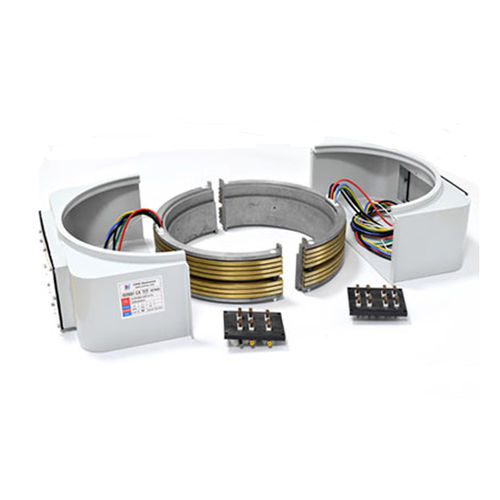

The two half style slip rings has 360mm through hole size,combine five power lines which support current up to 40Amp on each line. Meanwhile,there is signal line is built in.Due to its special structure with two half type,it is advantage on easy mounting and easy monitoring the contact brush and rings' surface status after a period using.As for the disadvantage,we would like to say that there is no dust and water proof. • Current : 5* 40A(360VAC),1* PE(360VAC), 1* 1A(220VAC) • Electrical noise : Max 70 mΩ(50 rpm) • Dielectric strength : ≥1000V@50hz • Isolation resistance : 500MΩ@500VDC • Contact material : Copper graphite • Protection grade : IP51 • Operating temperature : -20°C ~ + 60°C
