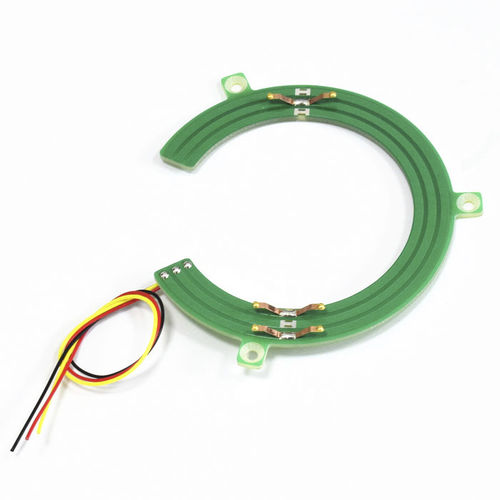

Pancake type slip ring PSCN055-03S
for automobileslow-torquePCB

pancake type slip ring
pancake type slip ring
Add to favorites
Compare this product


Characteristics

Construction
pancake type
Applications
for automobiles
Other characteristics
low-torque, PCB
Voltage

Min.: 0 V

Max.: 5 V

Primary current

1 A

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 100 rpm
(628 rad.min-1)

Number of channels

3 unit

Description

Pancake slip rings are designed for space-critical applications regarding height dimensions. As the flat shape is similar to a platter, they are also named flat slip rings and platter slip rings. Pancake slip ring as a another form of through hole slip ring, which are designed for somewhere vertical space is limited while horzontal space is less restrictive. special high vacuum sealing technology&precious metal brush ensure the high reliability transmitting and rotating performance of slip ring. The pancake separate PCB design, steel bearings and machined shaft render it is admired among customers. • Dielectric strength : 600VAC@50Hz 0.5MAL 1s • Isolation resistance : 500MΩ@500VDC • Working temperature : -20℃~+80℃ • Lead wire length : 100mm
