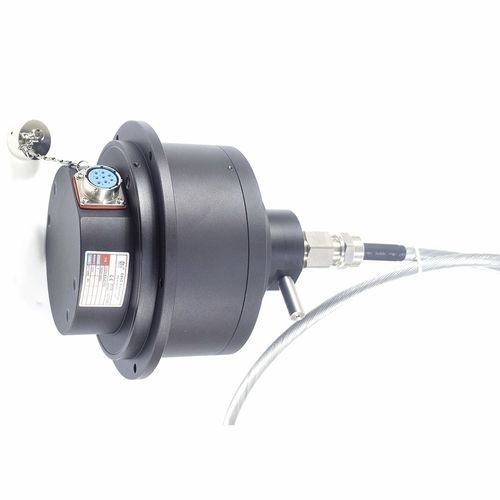

Packaging machine slip ring ECN-EX-07P2aluminum alloyexplosion-proofIP65
Add to favorites
Compare this product
Characteristics
- Applications
- packaging machine
- Material
- aluminum alloy
- Other characteristics
- IP65, explosion-proof
- Voltage
1,000 V
- Primary current
10 A
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 50 rpm
(314 rad.min-1)- Number of channels
7 unit
Description
Explosion-proof slip ring has more safety and higher reliability, designed for use in the condition which is easy to explode, such as in oil platform, explosive material packing machine, agro-product processing equipment, coal mine and spray finishing, etc.
• Dielectric strength : ≥1500VAC@50Hz
• Isolation resistance : ≥500MΩ@100VDC
• Resistance fluctuation : 70mΩ
• Lead wire size : W7F46PP-11.80mm
• Protection grade : IP65
• Working temperature : -40℃~+80℃
• Contact material : Precious metal
• Anti-explosion grade : ExdIIBT4 Gb IP65
• Housing material : Aluminum alloy
