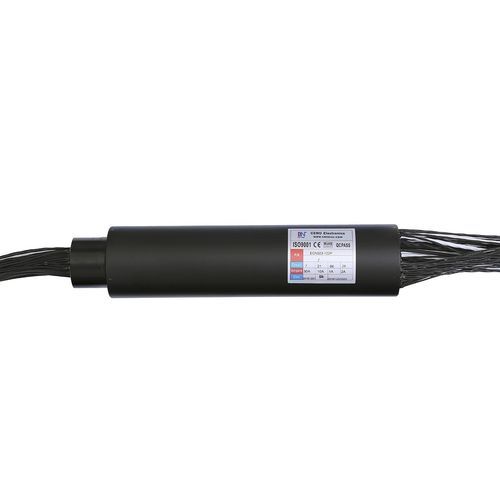

Fiber optic slip ring ECN023-122P

electricindustrialaluminum alloy

Our company CENO multi-channel slip rings' circuit number could reach more than 500 channels. It could integrate big or small current, digital signal, analog signal, fiber optic and radio frequency. It can still maintain the long life characteristic even if working speed will be 2000 rotation per minute. CENO can also provide many parameters for customer to choose, such as outer diameter, inner diameter, current, circuit number, IP protection. • Current : 7*30A ;21*10A ;66*1A ;28*2A • Rating voltage : 400VAC/50VDC/220VAC • Electrical noise : Dynamic noise <6 milliohm under 1A • Dielectric strength : - ≥1000VAC@50Hz(Power) ≥300VAC@50Hz(Signal) • Isolation resistance : 500MΩ@500VDC(Power) 100MΩ@300VDC(Signal) • Working temperature : -20℃~+60℃ • Protection grade : IP54 • Contact material : Gold to Gold • Housing material : Aluminum alloy
