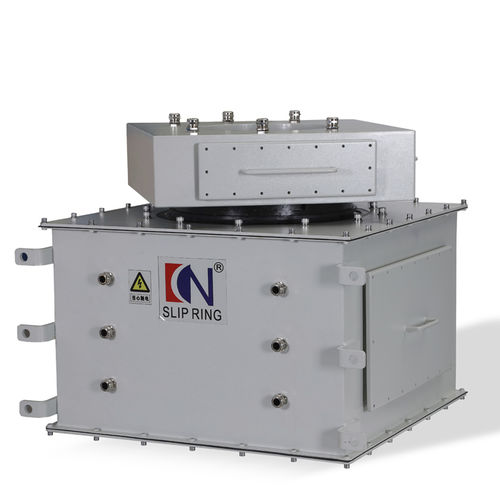

Electric slip ring ECN180-EX-04S

packaging machinefor marine applicationsmetal

Explosion-proof conductive slip ring has the explosion-proof function,it can work in the explosive environment,generally used in oil platforms,marine platforms, explosive material packaging equipment. At present, the explosion-proof slip ring is still in the non-standard customization stage. When customers choose the explosion-proof slip ring, they need to provide us the explosion-proof grade, circuit number, electrical performance and other parameter. • Rating voltage : 0~12VAC/VDC • Electrical noise : 20mΩ(50rpm) • Dielectric strength : ≥1000VAC@50Hz • Isolation resistance : ≥500MΩ@500VDC • Working temperature : -40℃~+80℃ • Protection grade : IP65 • Contact material : Precious metal • Anti-explosion grade : Exd II BT4 Gb IP65
