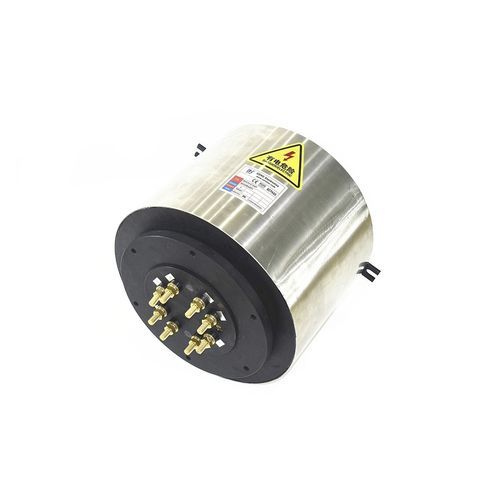

Electric slip ring BHCN-C-04P

packaging machinealuminum alloystainless steel

BHCN-C-04P is a high current slip ring with 4 circuits of 500A in CENO electrical company, we usually name is carbon brush slip ring or large current slip ring too. This serious large currents slip ring are developed for demanding requirements and rugged environments. Typical application include rotating working plat, ship propulsion appliances, large radar, packing machine or Hoisting machinery etc. The current is optional as 50A, 100A, 250A, 500A, 1000A, 3000A or even higher in many specification. For more information about how CENO’s large current slip rings can fit your specific application, contact CENO electrical company directly. • Current & Circuits : 4 Circuits * 500 • Dielectric strength : ≥1500VAC@60Hz • Isolation resistance : ≥500MΩ@500VDC(P) • Contact resistance fluctuation : ≤10mΩ • Lead wire length : Rotor: M12 binding post Stator:M12 wiring • Contact material : Copper graphite • Housing material : Aluminum alloy + Stainless steel • Working temperature : -30°C~+70°C • Working humidity : 90% • Protect grade : IP64
