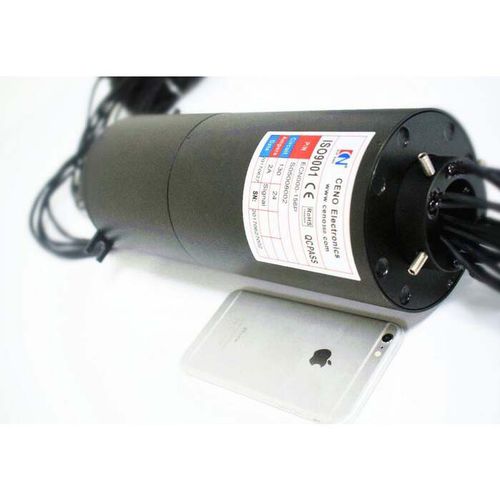

Fiber optic slip ring ECN000-156P

industrialmulti-channelradio frequency

Our company CENO multi-channels slip rings' circuit number could reach more than 500 channels. It could integrate big or small current, digital signal, analog signal, fiber optic and radio frequency. It can still maintain the long life characteristic even if working speed will be 2000 rotation per minute. CENO can also provide many parameters for customer to choose, such as outer diameter, inner diameter, current, circuit number, IP protection. • Current : 130*2A; 24* RS485 signal • Electrical noise : ≤70mΩ(50rpm) • Dielectric strength : ≥500VAC@50Hz • Isolation resistance : ≥500MΩ@500VDC • Working temperature : -40℃~+80℃ • Protection grade : IP44 • Contact material : Precious metal • Lead Wire Size : AWG26#/28# • Lead Wire Length : Rotor 3500mm;Stator 2000mm
