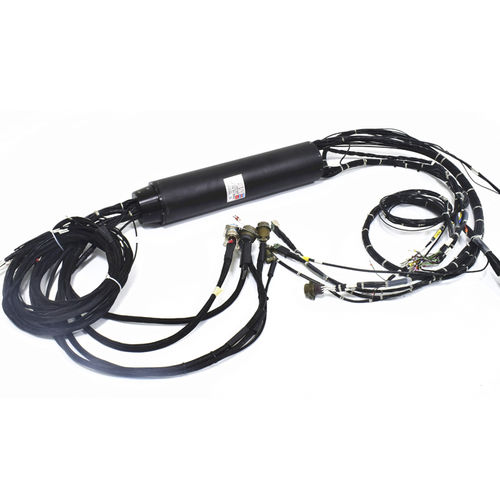

Electric slip ring ECN023-126P

fiber opticthrough-borefor industrial applications

Multi-channel slip ring is the slip ring with more than 50 channels. Multi-channel slip ring produced by CENO has optional operating speed, even up to 2000 rotation per minute. This kind of CENO's multi-channel slip ring could reach more than 500 channel. It could integrate big or small current, digital signal, analog signal, fiber optic and radio frequency. This multi- channel slip ring gets long lifespan characteristic. • Current : 6*30A ;22*10A ;84*1A ;14*2A • Rating voltage : 400VAC/50VDC/220VAC • Electrical noise : Dynamic noise <6 milliohm under 1A • Dielectric strength : - ≥1000VAC@50Hz(Power) ≥300VAC@50Hz(Signal) • Isolation resistance : - 500MΩ@500VDC(Power) 100MΩ@300VDC(Signal) • Working temperature : -20℃~+60℃ • Protection grade : IP54 • Contact material : Gold to Gold • Housing material : Aluminium alloy
