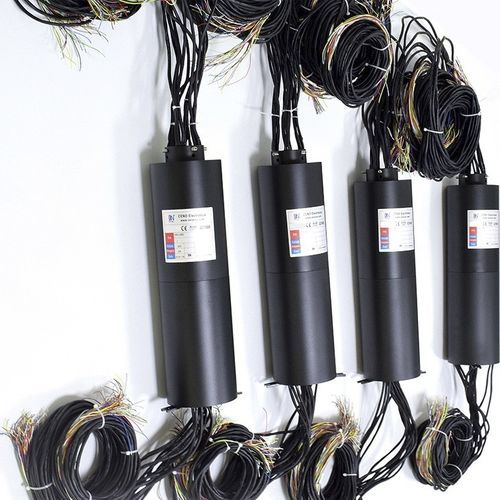

Fiber optic slip ring ECN000-240P

electricfor industrial applicationsmulti-channel

Our company CENO multi-channels slip rings' circuit number could reach more than 500 channels. It could integrate big or small current, digital signal, analog signal, fiber optic and radio frequency. It can still maintain the long life characteristic even if working speed will be 2000 rotation per minute. • Current : 240*2A • Rating voltage : 240VAC/VDC • Electrical noise : ≤70mΩ(50rpm) • Dielectric strength : ≥500VAC@50Hz • Isolation resistance : 500MΩ@500VDC • Working temperature : -20℃~+60℃ • Protection grade : IP54 • Contact material : Precious metal • Lead Wire Size : AWG26# • Lead Wire Length : Rotor 5000mm;Stator 2000mm
