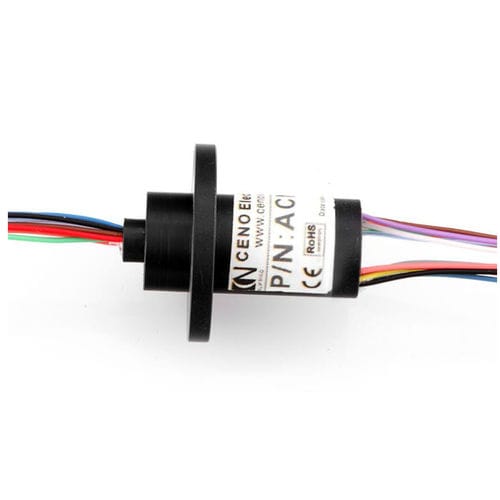

Capsule slip ring BCN12-04

electricfor medical equipmentplastic

BCN series belongs to Capsule slip ring.It can accommodate multi rings inside of the small housing.Gold to gold contact surface make electrical noise extremely low.Circuit number up to 100 and current rating for each circuit could from milliampere to 30Amp.However,standard current value have 2Amp,5Amp,10Amp,20Amp.Small size with outer diameter from 5.5mm to 25mm are all optional and can meet different demands.Widely to be used in various applications,like drone,automation,medical machine and so on.Whatever need 360 degree unlimited rotation could use CENO slip ring to transfer a variety of signal and power. • Operating Humidity : 60%RH or higher • Electrical noise : <10m Ω • Operating temperature : -20~+80℃ • Protection Grade : IP54 • Housing Material : Engineering Plastics • Contact Material : Precious Metals • Lead wire size : 28# • Option : • Lead wire length • IP grade • Operating speed
