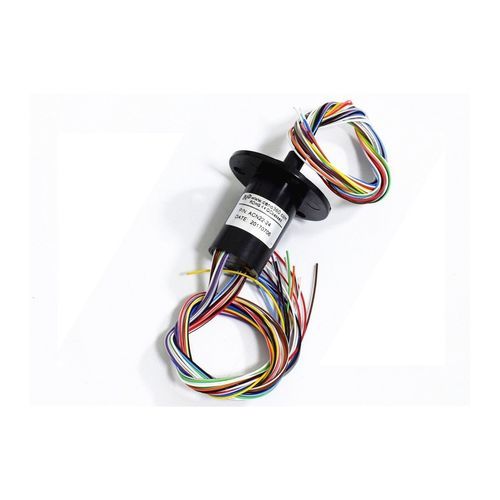

Capsule slip ring ACN22A-24

for medical equipmentplasticcompact

Capsule slip ring due to its outline and compact size.It has multi rings inside of the small housing.Gold to gold contact surface make resistance extremely low.Circuit number up to 100 and current rating for each circuit could from milliampere to 30Amp.However,standard current value have 2Amp,5Amp,10Amp,20Amp and so forth.Small size with outer diameter from 5.5mm to 25mm are all optional and can meet different demands.Widely to be used in various applications,like drone,automation,medical machine and so on.Whatever need 360 degree unlimited rotation could use CENO slip ring to transmit a variety of signal and power. • Operating Humidity : 60%RH or higher • Electrical noise : <10m Ω • Operating temperature : -20~+80℃ • Protection Grade : IP54 • Housing Material : Engineering Plastics • Contact Material : Precious Metals • Lead wire size : 28# silver plated copper • Option : • Lead wire length • IP grade • Operating speed
