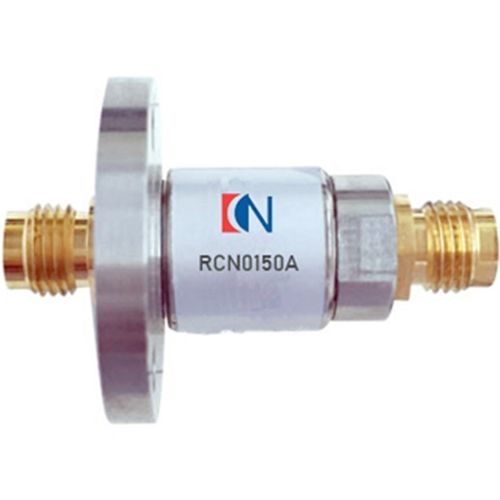

Copper slip ring RCN0150Acompactwith gold contactsminiature
Add to favorites
Compare this product
Characteristics
- Material
- copper
- Other characteristics
- compact, with gold contacts, miniature, high-frequency, coaxial, RF
- Rotational speed
200 rpm
(1,257 rad.min-1)- Number of channels
1 unit
Description
RCN0150A one channel coaxial rotary joint has 1 channel with 2.4mm female (50ohms) connector. It is used for transmitting high frequency signal from rotor stator side to stator rotor side. Inside base contact material is copper and finished material is gold.it has compact structure, strong anti interference ability, easy to be integrated in other equipment. Life up to 10million rotations at least with 1500W peak power.According to exact application,protection grade can be designed.
• Frequency range : DC to 50GH
• Connector : 2.4mm Female (50ohms)
• Peak power,max : 1000W
• Working temperature : -40℃~+70℃
• Insertion loss,WOW : 0.1d
• IP protection grade : IP60
