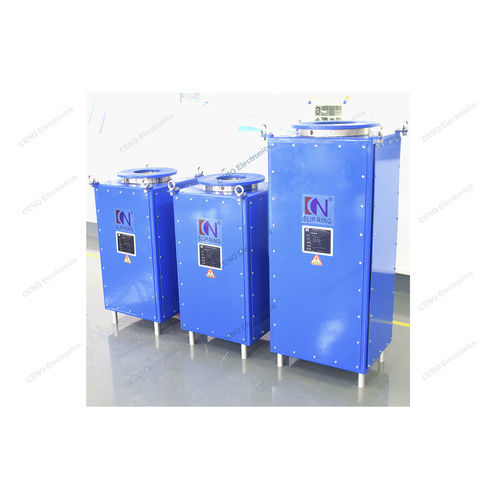

Slip ring for marine applications BHCN-C-11P-57S
for cranesIP54with gold contacts

slip ring for marine applications
slip ring for marine applications
slip ring for marine applications
Add to favorites
Compare this product


Characteristics

Applications
for marine applications, for cranes
Other characteristics
IP54, with gold contacts, low-maintenance
Voltage

24 V, 220 V, 500 V

Primary current

100 A, 800 A

Rotational speed

Max.: 15 rpm
(94 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Number of channels

68 unit

Internal diameter

230 mm
(9.06 in)

Description

High current slip ring, means 250A, 500A, 600A, 800A, 1500A, 3000A and other specifications, different current specifications are applicable to a variety of different sizes and power plating equipment with easy installation and large load flow. This kind of slip ring has been widely used in Marine cranes, drilling platform cranes, Marine thrusters and other fields. • Current 6*800A,3*100A,2*PE 3*heater , 40*signal, 14*signal • Voltage 500VAC 220VAC/24VDC • Electrical noise ≤10mΩ(50rpm) ≤10mΩ(50rpm) • Dielectric strength ≥2500V@50Hz ≥1000V@50Hz • Isolation resistance ≥500MΩ@500VDC ≥300MΩ@500VDC • Contact material copper graphite precious metal,gold- plated • Operating speed : 0-15 rpm • Operating temperature : 20~+60℃ • IP protection grade : IP54
