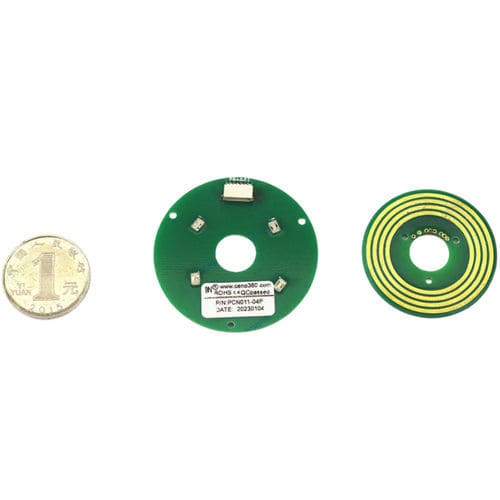

Signal transmission electrical rotary joint PCN011-04P

pancake typethrough-holefor rotary tables

PCN011-04P is CENO’s newly developed platter separate slip ring, for the limited vertical space and less restrictive horizontal space, platter separates can be an ideal solution. The units supplied generally consist of a slip ring that based on PCB style and the matching brush block or board depend on requirement. The particular is separate components or integrated assemblies, suits for applications with minimal available space, such as the Electric devices, Medical facility, LED industry or Medical equipment,etc. For more information about how CENO’s Separate PCB Slip Ring can fit your specific application, please contact us. • Current & Circuits : 2circuits*3A, 2circuits*Signal • Dielectric strength : ≥100VAC@50Hz • Isolation resistance : ≥300MΩ@500VDC • Electrical noise : ≤10mΩ (50rpm) • Contact material : Precious metal • Housing material : PCB (FR-4) • Working temperature : -20°C~+60°C • Working humidity : 60% • IP protection grade : IP00 • Through hole size : Ø11mm • External diameter : Ø38mm
