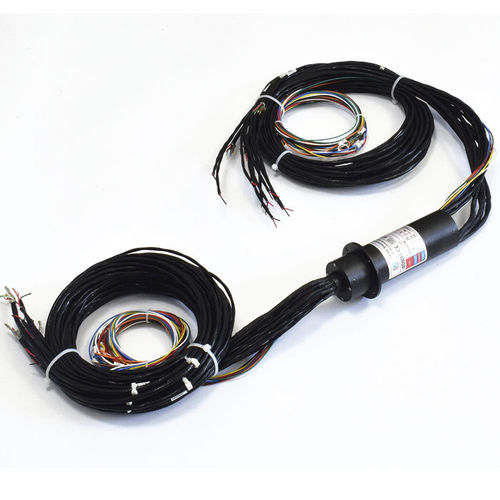

Capsule slip ring ECN000-64Paluminum alloywith gold contactsmulti-channel
Add to favorites
Compare this product
Characteristics
- Construction
- capsule
- Material
- aluminum alloy
- Other characteristics
- IP54, with gold contacts, multi-channel
- Voltage
Min.: 0 V
Max.: 240 V
- Primary current
1 A, 2 A, 3 A
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 200 rpm
(1,257 rad.min-1)- Number of channels
64 unit
- External diameter
40 mm
(1.57 in)
Description
This slip ring looks like capsule slip ring, but its features are multi channels, 64 circuits total, most wires are twisted shielded wire, outer diameter is 40mm, compact size, working speed is 200rpm, inside contact material is gold to gold, housing material is aluminum alloy, the kind of slip ring is used for motion simulator.
• Electrical noise : 10m Ω max
• Dielectric strength :
≥1000V@50Hz(power)
≥300V@50Hz(signal)
• Insulation resistance : -
≥300MΩ@500VDC(power)
≥100MΩ@100VDC(signal)
• Contact material : gold to gold
• Housing material : aluminum alloy
• Operating temperature : -20~+60℃
• IP protection grade : IP54
