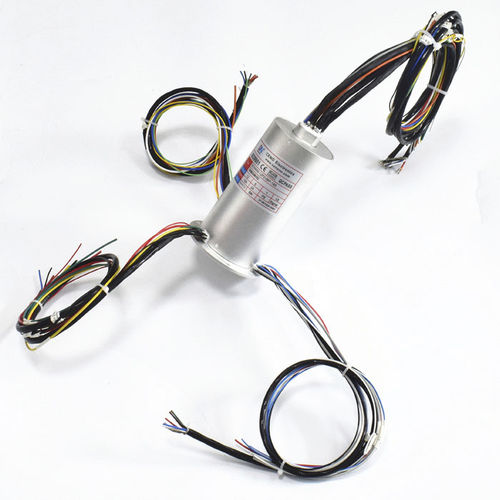

Electric slip ring ECN000-12P2-06P-18S

industrialconductiveIP54

This slip ring is for lithium battery equipment, it has three lead wire exits at the stator side, there are across flats design on rotational shaft or easy fixing rotor part. CENO company produce the industrial conductive slip ring from customer manufacturing. Using the industry-leading manufacturing process, CENO can provide many parameters for customer to choose, such as outer diameter, inner diameter, current, circuit number, IP protection etc. • Current : 12*10A,6*2A,1*PE,18*signal • Electrical noise : ≤70mΩ(50rpm) • Dielectric strength : - ≥1000V@50Hz(power) ≥500V@50Hz (signal) • Insulation resistance : - 500MΩ@500VDC(power) 100MΩ@100VDC(signal) • Contact material : precious metals • Operating temperature : -20~+60℃ • IP protection grade : IP54
