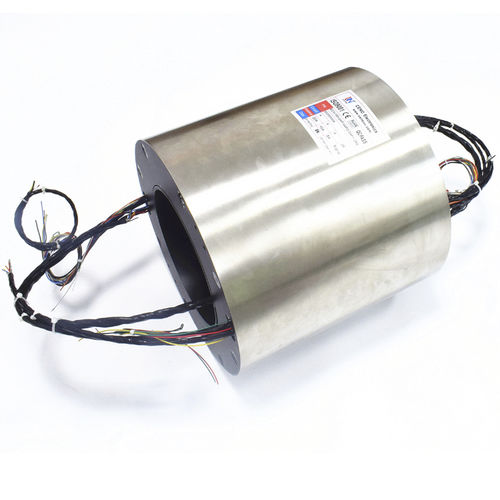

Through-bore slip ring ECN180-04P-04P2-04P1-26S

stainless steelIP54low-torque

This is big bore slip ring with hole size 180mm, it is used for motion simulator, it transmits 10 circuits limit signal and 2 group encoder signal, housing material is stainless steel. CENO electronics has a senior design and development team, which can develop large diameter conductive slip ring with hole diameter of 100mm,180mm, 200mm, 300mm, 400mm, 500mm, 600mm to 1000mm, to meet the needs of customers for special equipment with large aperture conductive slip ring. • Current : 4*20A,4*10A,4*5A, 1*PE,10* limit signal ,2 group*encoder signal • Voltage : 0-220VAC/VDC • Electrical noise : ≤70mΩ(50rpm) • Dielectric strength : - ≥1000V@50Hz(power) ≥300V@50Hz (signal) • Isolation resistance : - 500MΩ@100VDC(power) 100MΩ@100VDC(signal) • Contact material : precious metals • Housing material : stainless steel • IP protection grade : IP54
