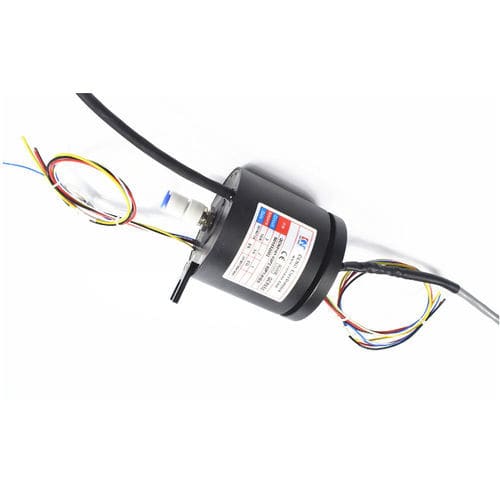

Air rotary joint QCN0101-03P2-02P1-01EG

industrialpneumatic

This is an integrated rotary joint for lithium battery equipment. Power channels integrate air channel. The air pressure support 1.0MPa and its connector size is 8mm.One group of 1000M Ethernet is combined into the design too. • Current : 3*10A, 2*5A, 1 group 1000M Ethernet • Voltage : 380VAC • Electrical noise : ≤70mΩ(50rpm) • Dielectric strength : - ≥1000VAC@50Hz(power) ≥300VAC@50Hz (signal) • Insulation resistance : 500MΩ@500VDC(power) 100MΩ@300VDC(signal) • Contact material : precious metals • Operating temperature : -20℃~+60℃ • Channel number : 1*air • Connector size : Ø8 pipe @G1/8
