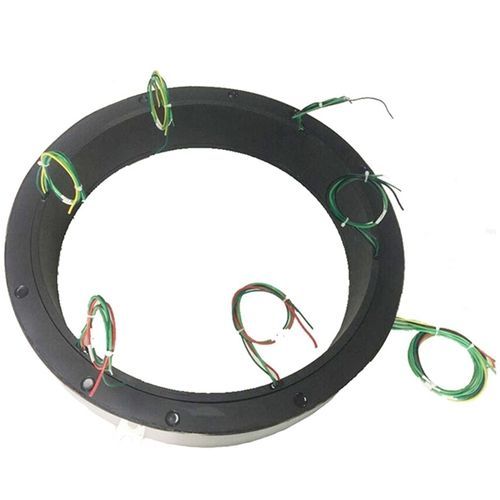

Hollow-shaft slip ring ECN435-04P-12S

for industrial applicationslarge-diameter

This is large size slip ring, through bore size is 435mm, there are 6 group K type thermocouple signal. It is mainly used for food automation equipment, not only has the stable transmission performance, but also has the good rotation performance. CENO production processes allow the slip ring to be built in an assembly line fashion that significantly reduces delivery time and price. • Current : 3*15A ,1*35A , 6 group*K thermocouple signal • Voltage : 0-440VAC/VDC • Dielectric strength : - ≥1000V@50Hz(power) ≥100V@50Hz(signal) • Isolation resistance : - 500MΩ@500VDC(power) 100MΩ@100VDC(signal) • Contact material : precious metals • Operating temperature : -30~+80℃ • IP protection grade : IP51
