Electric slip ring ECN-EX-03P2
for industrial applicationsfor marine applicationsaluminum alloy

Electric slip ring - ECN-EX-03P2 - CENO Electronics technology Co., Ltd - for industrial applications / for marine applications / aluminum alloy
Electric slip ring - ECN-EX-03P2 - CENO Electronics technology Co., Ltd - for industrial applications / for marine applications / aluminum alloy
Add to favorites
Compare this product


Characteristics

Type
electric
Applications
for industrial applications, for marine applications
Material
aluminum alloy
Other characteristics
IP65, rugged, explosion-proof
Voltage

1,000 V

Primary current

10 A

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 50 rpm
(314 rad.min-1)

Number of channels

3 unit

Description

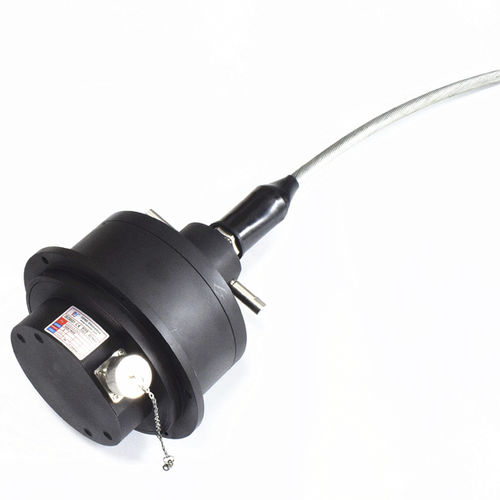

CENO designs the explosion-proof slip ring base on different working environment. According to the protection grade, anti- explosion grade, circuit number, electrical properties of customer's requirement,we choose various construction and material. This kind of explosion-proof slip ring always be customized. Below is explosion-proof slip ring for marine engineering equipment, IP protection grade is IP65, working temperature -40~+80℃, rotor side has 2m wire and stator side has plug. Anti-explosion grade is Exd II BT4 Gb IP65, housing material is aluminum alloy. • Electrical noise : 70mΩ • Dielectric strength : ≥1500V@50Hz • Isolation resistance : ≥500MΩ@100VDC • Contact material : precious metal • Operating temperature : -40~+80℃ • Anti-explosion grade : Exd II BT4 Gb IP65 • IP protection grade : IP65
