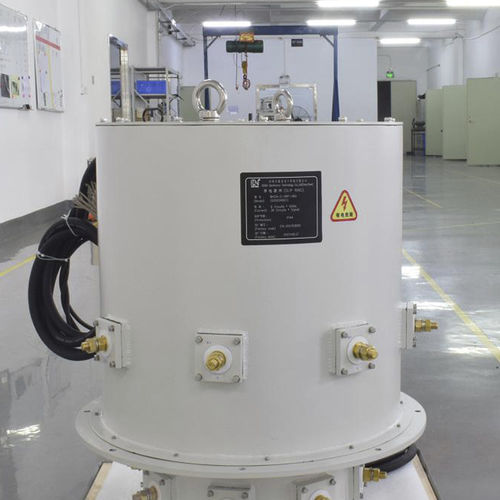

Solid-shaft slip ring BHCN-C-06P-36S

industrialfor marine applicationscarbon steel

This is CENO BHCN series high current slip ring ,it is used for marine propeller equipment,contact material applied copper graphite and fiber brush wire.it transmits current,switching signal and thermal resistance signal.designed 6 bolt connector allows users to connect wires for high current (600A) .the shaft is used to install the encoder,its housing material is carbon steel paint spraying. • Current : 6*600A - 4*switching signal ,32*thermal resistance signal • Voltage : 600VAC 24VDC • Electrical noise : ≤5mΩ(50rpm) ≤30mΩ(50rpm) • Dielectric strength : ≥2000V@60Hz ≥500V@60Hz • Isolation resistance : 500MΩ@500VDC 100MΩ@100VDC • Contact material : Copper graphite Alloy brush wire (silver plated) • Maintainability : Regular maintenance Maintenance-free • Operating temperature : -30~+80℃ • IP protection grade : IP44
