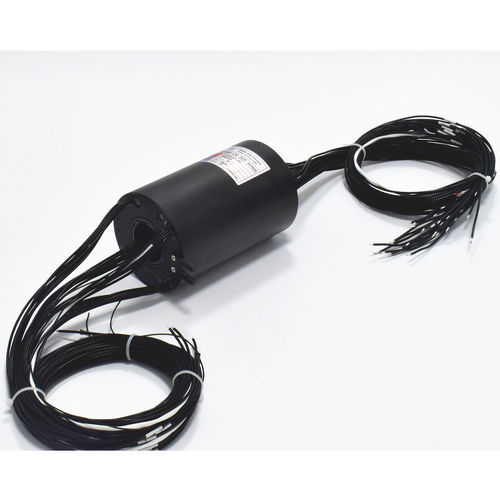

Electric slip ring ECN038-03P1-36S

through-holefor cranesfor radar antennas

Slip rings are used in electromechanical applications for transmitting power, electrical signals and data through a 360°rotating joint from a stationary part to a freely rotating part. Typical use applications are cranes and radars.below through hole slip ring with 38.1 hole size ,rotation speed can reach 500 rpm,fast and smooth rotation. • Current : 10*2A,26*1A,3*5A • Electrical noise : ≤70mΩ@6VDC,50mA • Dielectric strength : ≥500V@50Hz • Isolation resistance : 300MΩ@100VDC • Contact material : gold to gold • Operating temperature : -30~+40℃
