Multi-channel slip ring ECN000-14P1-157P

industrialaluminum alloywith gold contacts

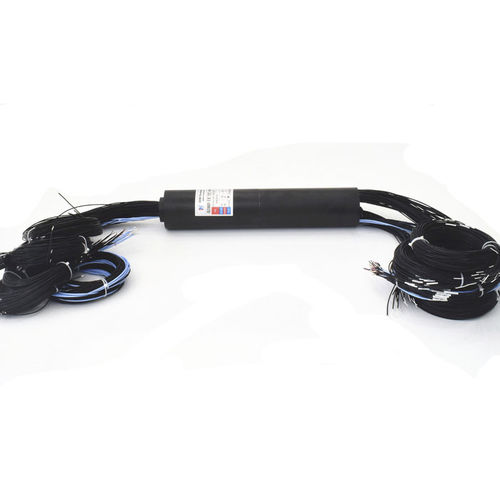

This is multi-channel slip ring for motion simulator, housing material is aluminum alloy, its length is 438mm. You can see there are more than 150 channels at both rotor and stator side to transmit power and signal, and the wire length reach 2m. Slip Rings are used wherever electric currents or signals need to be transmitted from a stationary machine element to a rotating shaft or vice versa. • Current : 14*5A,137*2A,20*1A • Voltage : 240VAC/150VDC/50VDC • Electrical noise : ≤70mΩ(50rpm) • Dielectric strength : - ≥1000V@50Hz ≥300V@50Hz (signal) • Isolation resistance : 500MΩ@500VDC 100MΩ@300VDC (signal) • Contact material : gold to gold • Housing material : aluminum alloy • Operating temperature : -20~+60℃ • IP protection grade : IP54
