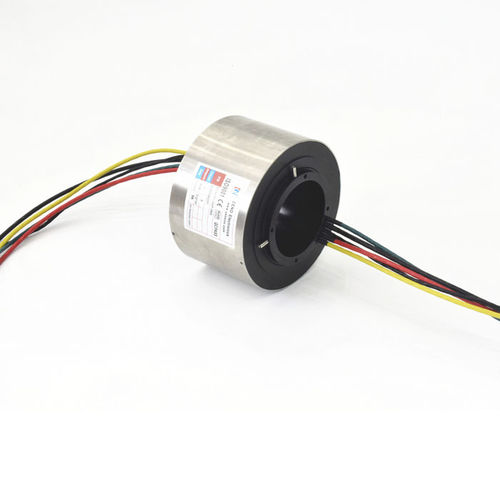

Hollow-shaft slip ring ECN101-04P-06S

industriallarge-diameterconductive

The large-size conductive slip ring is based on conventional conductive slip rings and are designed to meet the needs of large electromechanical systems. It not only has excellent and stable transmission performance, but also has excellent rotation performance. It adopts unique contact technology to ensure stable contact. • Current : 4*50A, 6* signal • Voltage : 0-500VAC/VDC • Electrical noise : ≤30mΩ(50rpm) • Dielectric strength : - ≥1500V@50Hz(Current) ≥300V@50Hz(Signal) • Isolation resistance : - 500MΩ@500VDC(Current) 100MΩ@300VDC(Signal) • Contact material : precious metals • Operating temperature : -20~+60℃ • IP protection grade : IP51
