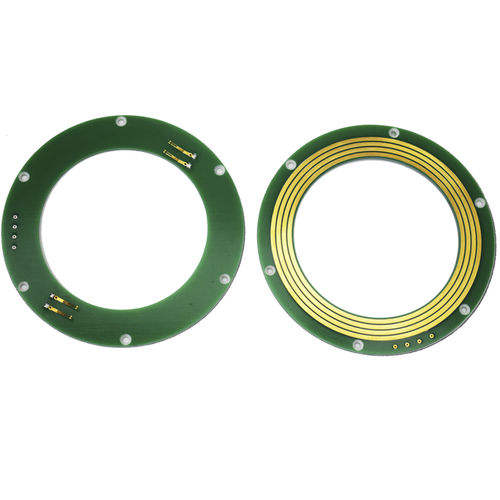

CAN bus slip ring PSCN090-02P-02Spancake typefor the lighting industryminiature
Add to favorites
Compare this product
Characteristics
- Type
- CAN bus
- Construction
- pancake type
- Applications
- for the lighting industry
- Other characteristics
- miniature, cost-effective, PCB
- Voltage
Min.: 0 V
Max.: 12 V
- Primary current
2 A
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 10 rpm
(63 rad.min-1)- Number of channels
4 unit
- Internal diameter
90 mm
(3.54 in)
Description
CENO separate pancake slip ring is also called platter slip ring because of its outline. Extremely thin is the feature of this series slip ring. A pancake or platter style slip ring can be used in a certain applications where a cylindrical shape slip ring will simply not fit into the available space or a very low profile is needed.
• Current : 2*2A,2*2A(CAN bus signal)
• Electrical noise : ≤70mΩ(50rpm)
• Dielectric strength : ≥500V@50Hz
• Isolation resistance : 100MΩ@100VDC
• Contact material : Precious metals
• PCB : FR-4
• Inner diameter : 90mm
• Rotation way : Pcb board fixed on customers flange
