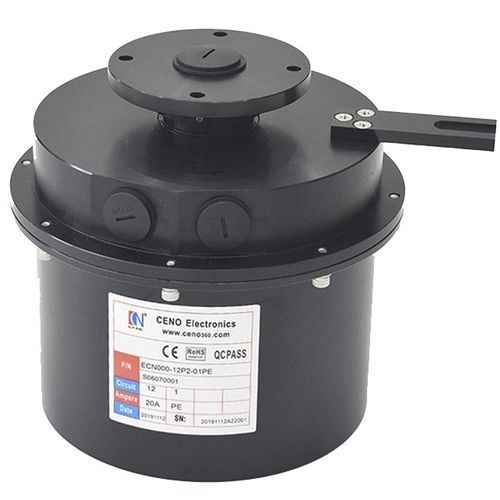

Waterproof slip ring ECN000-12P2-01PE

solid-shaftcolumn typeindustrial

This is high protection rotary joint for food machinery, there are 12 circuits transferring power or signal with one circuit for PE. It adopts advanced fiber brush multipoint contact, low friction, long life. When the cover is correctly sealed, it can use for dust prevention and weatherproofed to IP65, housing material is aluminum alloy, mounting flanges can be designed to suit customer's requirements, and ATEX compliant is optional. • Current : 12*10A,1*PE • Electrical noise : ≤30mΩ (50rpm) • Dielectric strength : ≥1500V@50Hz • Isolation resistance : 500MΩ@500VDC • Contact material : precious metals • Housing material : aluminum alloy • Operating temperature : -20~+60℃ • IP protection grade : IP65
