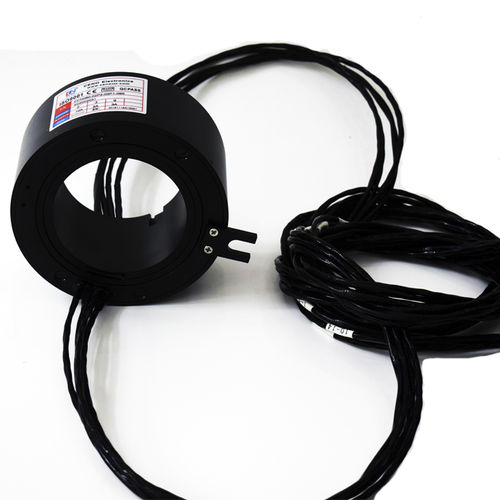

Through-hole slip ring ECN080-02P2-03P1-09S
industrialaluminum alloymodular

through-hole slip ring
through-hole slip ring
Add to favorites
Compare this product


Characteristics

Construction
through-hole
Applications
industrial
Material
aluminum alloy
Other characteristics
IP54, fiber brush, modular, maintenance-free
Voltage

380 V

Primary current

2 A, 3 A, 9 A

Rotational speed

Max.: 60 rpm
(377 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Number of channels

14 unit

Internal diameter

80 mm
(3.15 in)

Description

Through hole slip ring adopts advanced fiber brush technology, free of maintenance and no need of lubricating oil. Multi-point contact, low contact pressure and wear, low noise, long service life. Standardized, modular design, complete product specifications, and it can be customized for customers' products. • Current : 2*10A,3*5A,9*3A • Electrical noise : ≤70mΩ(50rpm) • Dielectric strength : ≥500V@50Hz • Isolation resistance : 500MΩ@500VDC • Contact material : precious metals • Operating temperature : -20~+60℃
