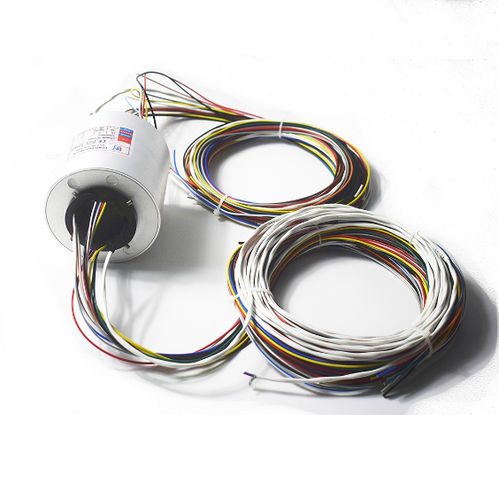

Electric slip ring ECN038-15P2-02S

through-holeindustrialmodular

The through-hole slip ring is a general term for a series of electrical slip rings with a hole in the center. It is mainly used to transmit precision signals, weak current, high current and high voltage. Under continuous rotation of 360°, continuous transmission of power and signals, fiber brush technology, free maintenance or lubrication,multiple contact points on each circuit, low contact pressure, low noise, low contact wear, extremely long working life, standardized & modular design,also offers customized solutions, welcome to contact us. • Current : 15*10A, 1*485signal • Electrical noise : ≤70mΩ(50rpm) • Dielectric strength : - ≥1000V@50Hz(power) ≥300V@50Hz(signal) • Insulation resistance : - 500MΩ@500VDC(power) 100MΩ@300VDC(signal) • Contact material : precious metals • Operating temperature : -20~+60℃ • IP protection grade : IP54
