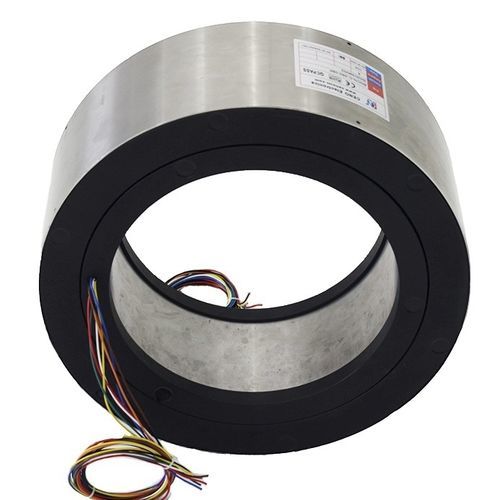

Through-bore slip ring BHCN-C-260-08P
industrialstainless steelIP54

through-bore slip ring
through-bore slip ring
through-bore slip ring
Add to favorites
Compare this product


Characteristics

Construction
through-bore
Applications
industrial
Material
stainless steel
Other characteristics
IP54, carbon brush, large-diameter, electrical power supply
Voltage

1,000 V

Primary current

10 A

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 8 rpm
(50 rad.min-1)

Number of channels

8 unit

Internal diameter

260 mm
(10.24 in)

Description

This is big bore rotary union of inner diameter 260mm,contact material apply imported copper graphite,reliable performance,low dust,long life.housing material uses stainless steel.It would be easier for you to choose the electronics brush slip ring. But if the current or voltage is large , carbon brushes slip ring is a better choice. You just need to tell us the parameters including channels, current of each channel, hole size, OD and so on, we will provide a suitable solutions and drawings for you in free according to your parameters. • Electrical noise : ≤70mΩ(50rpm) • Dielectric strength : ≥ 2000V@50Hz • Isolation resistance : 500MΩ@500VDC • Contact material : copper graphite • Housing material : stainless steel • Operating temperature : -20~+60℃
