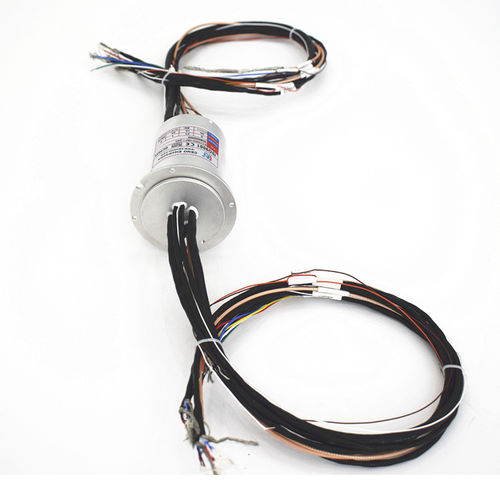

Custom slip ring ECN000-06P1-26S

solid-shaftindustrialIP54

This rotary joint stator and rotor side both are solid shaft, stator side has a flange for easy assembly, rotor side by screw fixing, transmitting current and signal, operating temperature at -40~+70℃ for extreme temperatures. It provides smoother running, lower torque and lower electrical noise than competitive slip rings. Applied in many applications and equipment, provide system solutions for worldwide. • Current : 6*5A,19*1A,1*2A,2*signal,2*1A • Electrical noise : ≤70mΩ(50rpm) • Dielectric strength : - ≥500V@50Hz(power) ≥300V@50Hz(signal) • Insulation resistance : - 500MΩ@300VDC(power) 100MΩ@300VDC(signal) • Contact material : precious metals • Operating temperature : -40~+70℃ • IP protection grade : IP54
