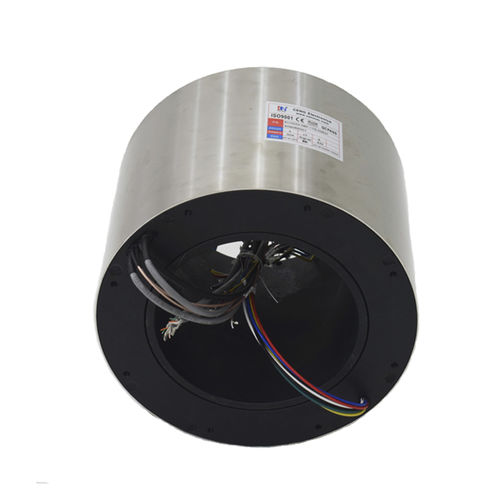

Ethernet slip ring ECN220-06P-17S-02EM

through-holefor industrial applicationsstainless steel

This is large size slip ring for motion simulator , inner diameter reaches 220mm. It can transmit current and signal at the same time, including RS232 signal, PAL signal, 100M Ethernet signal. stable transmission, no package loss, no cross talk, low loss. Housing material stainless steel and aluminum alloy. • Current : 6*30A,4*RS232 signal,2*PAL signal, 2*100M Ethernet • Voltage : 0~220VAC/VDC • Electrical noise : ≤15mΩ(50rpm) • Dielectric strength : - ≥1000V@50Hz(power) ≥300V@50Hz(signal) • Isolation resistance : - ≥500MΩ@500VDC(power) ≥100MΩ@100VDC(signal) • Contact material : precious metal • Housing material : Stainless steel • IP protection grade : IP51
