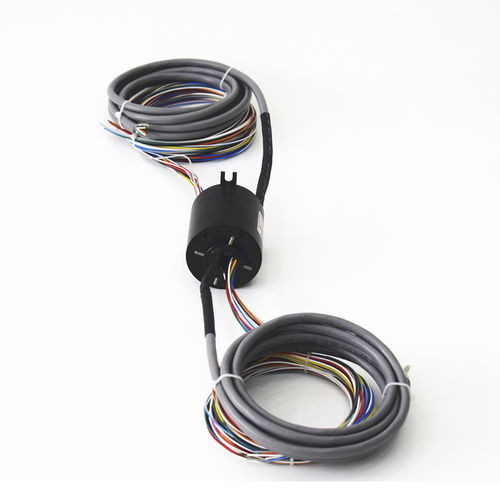

Ethernet slip ring ECN012-12P1-01EM
through-boreindustrialcompact

Ethernet slip ring
Ethernet slip ring
Add to favorites
Compare this product


Characteristics

Type
Ethernet
Construction
through-bore
Applications
industrial
Other characteristics
compact, standard, IP54
Voltage

380 V

Primary current

5 A

Rotational speed

Max.: 300 rpm
(1,885 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Number of channels

16 unit

Internal diameter

12.7 mm
(0.5 in)

Description

This is compact slip rings with one circuit transmissions for Ethernet signal. Standard Ethernet wires connection. It can combine with power or pneumatic/hydraulic slip ring. With RJ45 connectors, Ethernet slip ring also known as RJ45 slip ring. • Current : 12*5A,4*Ethernet signal • Electrical noise : ≤70mΩ(50rpm) • Dielectric strength : - ≥1000V@50Hz(power) ≥300V@50Hz(power) • Insulation resistance : - 500MΩ@500VDC(power) 100MΩ@100VDC(signal) • Contact material : precious metals • Operating temperature : -20~+60℃ • IP protection grade : IP54
