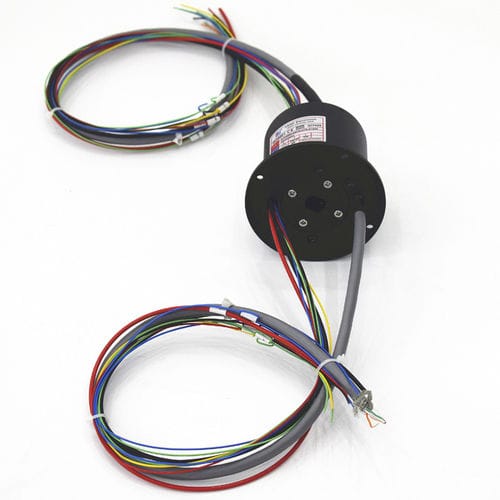

Ethernet slip ring ECN000-02P3-07S-01EM

solid-shaftindustrialaluminum alloy

Ethernet slip ring specially designed for 250Mhz frequency to transmit 100M/1000M Ethernet signals, with advantages of reliable transmitting, no packet loss, no string code, low return loss, low insertion loss. Slip ring is a general name for slip ring assembly which contains some combination of power, signals, data, liquid and gas passed through the same rotating joint. • Current : 2*15A,1*100M Ethernet, 5*422 signal,2*signal • Electrical noise : ≤30mΩ(50rpm) • Dielectric strength : - ≥1000V@50Hz(power) ≥300V@50Hz (signal) • Insulation resistance : 500MΩ@500VDC(power) 100MΩ@100VDC(signal) • Contact material : precious metals • Operating temperature : -20~+60℃ • Housing material : aluminum alloy • IP protection grade : IP54
