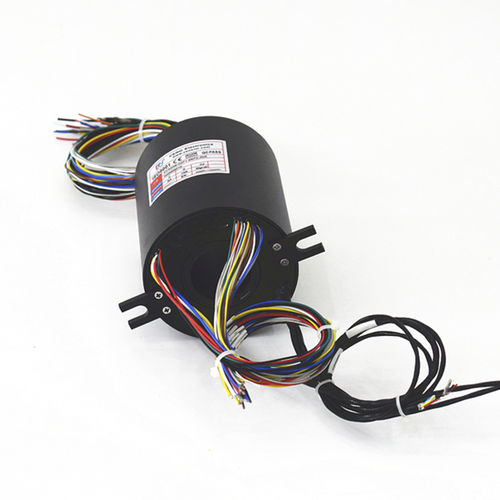

Through-bore slip ring ECN038-02P1-06P2-32S

industrialmetalIP54

A wide variety of options for making connections to slip rings that can be provided to make direct connections to the fixed and rotating parts of the rotating unit. Through bore slip rings is ideally suited for applications where signals and power need to be transferred in a compact space and a through hole is required to pass a shaft or other feed through. ECN series uses a modular design that allows for unprecedented flexibility with respect to package size, circuit count, and mix of power and signal circuits. Standard units can be supplied with bore diameters from 2 mm to 1500 mm, with larger diameters available as custom solutions. • Current : 6*10A,2*5A,6*2A, 3*switching signal ,20*signal • Electrical noise : ≤30mΩ(50rpm) • Dielectric strength : ≥1000V@50Hz • Insulation resistance : 500MΩ@500VDC • Contact material : precious metals • Operating temperature : -20~+60℃
