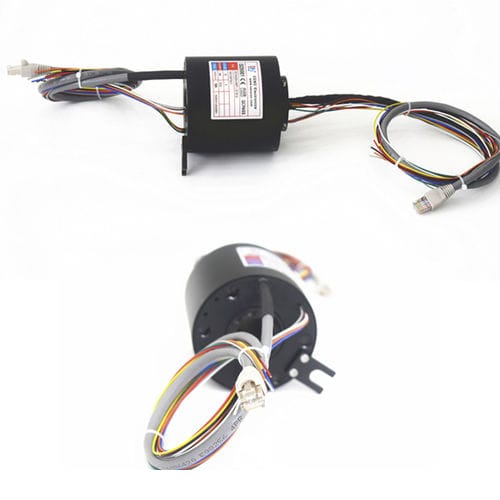

Ethernet slip ring ECN025-09P1-01EG
hollow-shaftindustriallow-torque

Ethernet slip ring
Ethernet slip ring
Add to favorites
Compare this product


Characteristics

Type
Ethernet
Construction
hollow-shaft
Applications
industrial
Other characteristics
IP54, high-performance, low-torque
Voltage

Min.: 0 V

Max.: 220 V

Primary current

5 A

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 300 rpm
(1,885 rad.min-1)

Number of channels

10 unit

Internal diameter

25.4 mm
(1 in)

Description

This is 1000M Ethernet slip ring for lithium electric production equipment application, it supports various speed specifications of 10M, 100mb and gigabit, which can be combined with electric slip ring, servo, thermocouple and other signals to form strong and weak electrical slip ring. Ethernet slip ring can also be integrated with gas-liquid rotary joint, transmission media type can be customized. • Current : 9*5A,1 group 1000M Ethernet • Electrical noise : ≤70mΩ(50rpm) • Dielectric strength : - ≥1000V@50Hz(power) ≥500V@50Hz (signal) • Insulation resistance : - 500MΩ@500VDC(power) 300MΩ@100VDC(signal) • Contact material : Precious metals • Operating temperature : -20~+60℃ • IP protection grade : IP54
