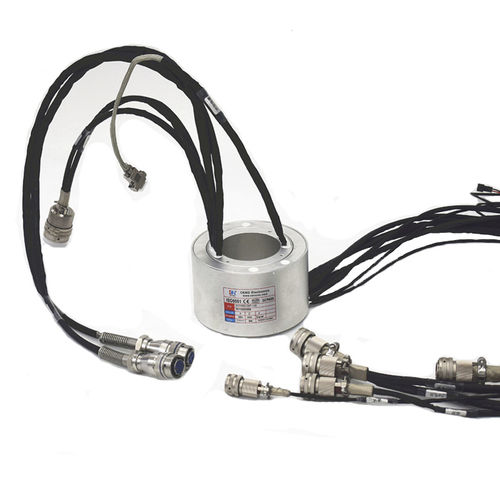

Through-hole slip ring ECN065-08P-12Sindustrialfor radar antennasnoise immunity
Add to favorites
Compare this product
Characteristics
- Construction
- through-hole
- Applications
- industrial, for radar antennas
- Other characteristics
- noise immunity
- Voltage
24 V
- Primary current
1 A, 25 A, 40 A
- Rotational speed
Max.: 20 rpm
(126 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Number of channels
18 unit
- Internal diameter
65 mm
(2.56 in)
Description
This slip ring is designed for radar antenna.Aviation plugs at the cable end simplify the connection and make the connection between cable and equipment is uniquely. Its through hole 65mm allows any shaft with diameter smaller than this size pass through.
• Current : 4*25A,2*40A,12*1A signal
• Electrical noise : ≤20mΩ(50rpm)
• Dielectric strength : >200V@50Hz
• Insulation resistance : ≥200MΩ@200VDC
• Contact material : precious metals
• Operating temperature : -40~+65℃
• IP protection grade : IP51
