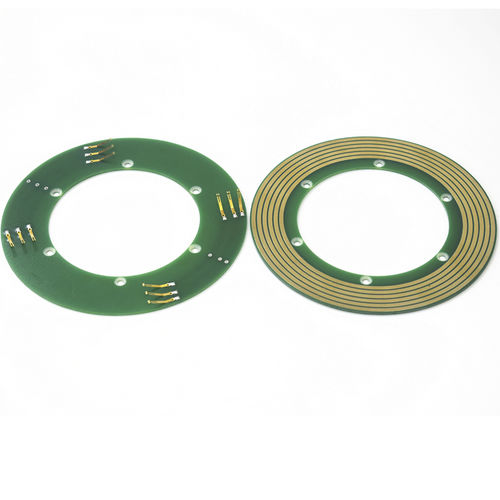

Through-bore slip ring PSCN082-06P1

pancake typeindustrialbrushed copper

Pancake slip ring is as another form of though hole slip rings. CENO's pancake slip rings are designed for some equipment which vertical space is limited while horizontal space is less restrictive.This type slip ring provides ultrathin thickness for special limited installation space.Thickness could be up to 4mm.This kind pancake slip ring design with through hole or no hole are optional.Both copper ring and brush contact surround a central hole,which saves space a lot.They consists of separated rotor and contact brush,with many features, low resistance,easy to install, simplify system design. • Electrical noise : ≤70mΩ(50rpm) • Dielectric strength : ≥500V@50Hz • Isolation resistance : 100MΩ@100VDC • Contact material : Precious metal • Operating temperature : -20~+60℃ • PCB : FR-4
