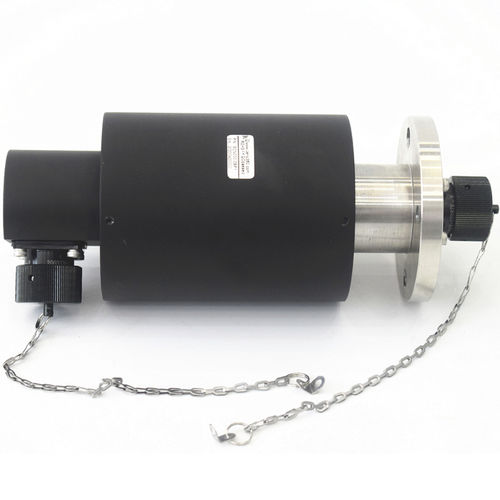

Custom slip ring ECN000-08P1

solid-shaftindustrialstainless steel

IP 65 high protection grade rotary joint with 304 stainless steel housing material, stainless steel body has good environmental suitability. The rotary joint stator and rotor side are connected to aviation socket to transmit current instead of lead wire, the socket has dust cover to prevent dust. Our solutions are customized to meet the circuits, ratings and other parameters required for your application.We engineer what you need. • Electrical noise : ≤30mΩ(50rpm) • Dielectric strength : ≥1000V@50Hz • Insulation resistance : 500MΩ@500VDC • Contact material : precious metals • Operating temperature : -40~+50℃ • Housing material : Stainless steel • IP protection grade : IP65
