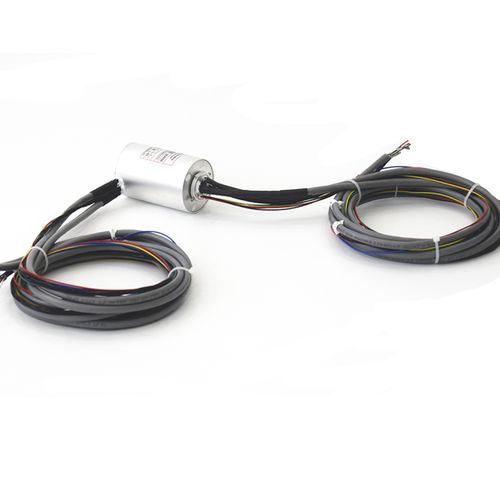

Ethernet slip ring ECN012-04P1-04S-01EM-01EG
hollow-shaftindustrialcompact

Ethernet slip ring
Ethernet slip ring
Add to favorites
Compare this product


Characteristics

Type
Ethernet
Construction
hollow-shaft
Applications
industrial
Other characteristics
compact, high-performance, electrical power supply
Voltage

380 V

Primary current

6 A

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 300 rpm
(1,885 rad.min-1)

Number of channels

7 unit

Internal diameter

12.7 mm
(0.5 in)

Description

Hollow shaft Ethernet slip rings transmit 100M/1000M Ethernet signal. Ethernet connections with a combination of power connections, with advantages of reliable transmitting, no package loss, no cross talk, low loss, low electrical noise and Ethernet cables terminated with RJ45 connectors. Power & signal can be combined to deliver in one body. • Current : 4*6A,1*422signal,1*100M Ethernet, 1*1000M Ethernet • Electrical noise : ≤70mΩ(50rpm) • Dielectric strength : ≥1000V@50Hz • Insulation resistance : 500MΩ@500VDC • Contact material : precious metals • Operating temperature : -20~+60℃ • IP protection grade : IP51
