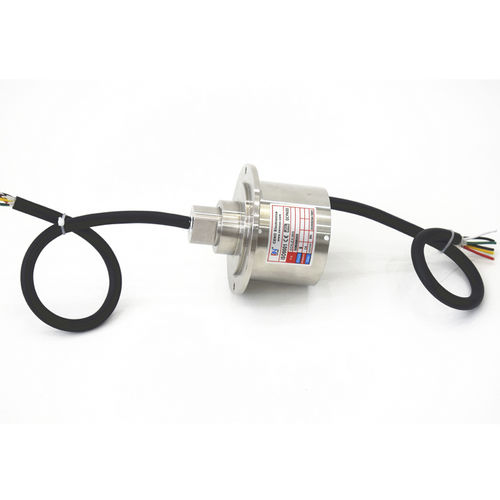

Blind-shaft slip ring ECN-EX-06S

solid-shaftpackaging machinestainless steel

Explosion-proof electrical slip ring, usually refers to the explosion-proof function, can work under explosive environment,such as oil platform, explosive material packaging equipment, agricultural processing equipment, coal mines, spraying and other dangerous places .CENO combined with years of experience in developing and producing highly reliable slip rings, an explosion-proof type conductive slip ring is developed, which can meet the requirements of explosive gas environment and explosive dust environment at the same time. The protection grade is IP67. • Electrical noise : ≤15mΩ(50rpm) • Dielectric strength : ≥300V@50Hz • Isolation resistance : 200MΩ@100VDC • Contact material : Gold to gold • Housing material : SUS316 • IP protection grade : IP67 • Explosion-proof grade : EX ǁ2 /2G EX ib mb/Ex pyb ǁC T6 Gb/Gb
