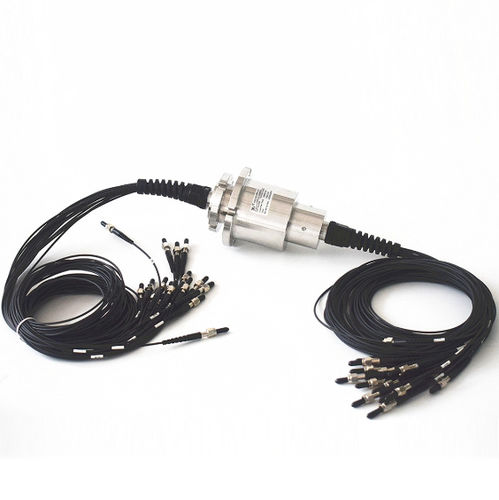

Fiber optic rotary joint for marine applications FCN0231G-67A-16

multi-channelIP65IP54

For more than 10 years, CENO has focused on the rotary interface needs of the energy industries. Today, our fiber optic rotary joints (FORJs) are recognized around the world for innovative performance and reliability in harsh marine environments. We design for demanding conditions. Rigorous testing of every FORJ is performed in our own environmental testing chambers and the facilities of testing specialists. Standard features, such as connector interfaces that allow for easy replacement of damaged pigtails, are designed to minimize down time. • Fiber type : SM/MM • Wave length : 850-1550nm • Insertion loss,MAX : < 3.5dB • Insertion loss,WOW : < 1.5dB • Return loss : ≥40dB • Power rating : ≤23dBm • Operation temperature : -20℃～+60℃ ( -40℃～+85℃ optional ) • Storage temperature : -45℃～+85℃ • IP grade : IP54 (IP65,IP67 optional)
