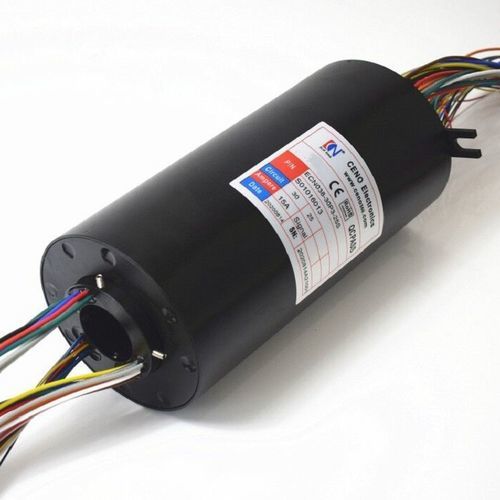

Ethernet slip ring ECN038-30P3-25S

PROFIBUSCAN busUSB

This is a hollow shaft slip ring ,it’s also called through hole slip ring ,CENO's hollow shaft slip ring hole size from 3mm to 980mm are optional.Standard through hole size are 12.7mm, 25.4mm, 38.1mm, 50mm, 60mm,70mm, 80mm, 100mm .and all other size are capable to be customized.Various signal such as Ethernet,USB,HDMI,SDI,Canbus profibus and power are capable to be integrated into one slip rings.CENO has accumulated abundant experience on design solution of Anti-vibration,anti-shock, corrosion proof,water proof and cross talk prevention. Flexible structure design on integrated slip rings attract more and more market,not only civil industry,but also defense field. • Rings : 30*15A,25*Signal • Electrical noise : ≤30mΩ(50rpm) • Dielectric strength : ≥1000V@50Hz(power) ≥300V@50Hz(signal) • Isolation resistance : ≥500MΩ@500VDC(power) ≥100MΩ@100VDC(signal) • Contact material : Precious metal • Housing material : Aluminium alloy sandblasted black oxide
