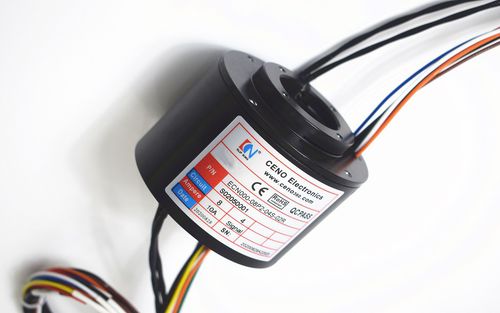

Integrated slip ring ECN000-08P2-04S-02R

EthernetPROFIBUSCAN bus

It's a integrated slip ring with power and signal. CENO can make various signal such as Ethernet, USB, HDMI, SDI, Canbus, Profibus and power are capable to be integrated into one slip ring according to customer's different request. It's can also integrated high frequency, fiber, encoder, wave guide, gas and liquid and other joints.The inner diameter can be choose from 3mm to 980mm. The typical application including industrial automation equipment, medical equipment, wind power equipment, test equipment etc. Any special requirements please contact with us, our professional R&D engineer will provide you with the best solutions. • Rings : 8*10A,4*signal • Voltage : 440VAC/VDC • Electrical noise : ≤10mΩ(50rpm) • Dielectric strength : ≥1000V@50Hz(power) ≥300V@50Hz(signal) • Insulation resistance : ≥500MΩ@300VDC(power) ≥100MΩ@300VDC(signal) • Contact material : Precious metal • Housing material : Aluminium alloy • IP protection grade : IP54 • Operating temperature : -40C°~+80C°
