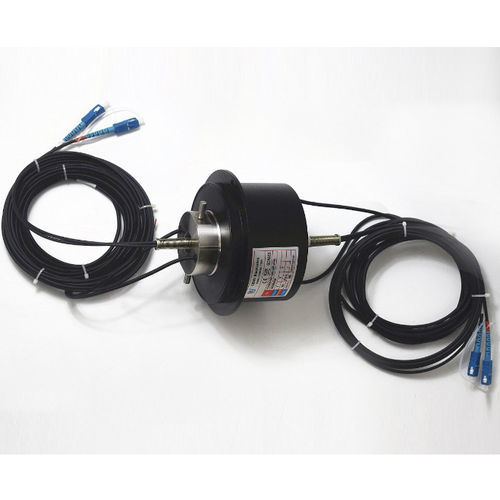

Fiber optic slip ring

blind-shaftindustrialstainless steel

This is a customized slip ring with power, signal, fiber optical, it’s also a waterproof slip rings. Designed specifically for underwater operation and waterproof work. According to working environment, the water-proof slip ring could be divided into multiple protection grade, such as IP65, IP66, IP67, IP68 and so on. With stable performance and low torque, working temperature is -20°C~ +80°C. The inner diameter can be customized from 3 mm to 980mm. Any special request please contact with CENO, we will provide the best solution. • Circuits & Current : 2*2A,2*20mA,2*Fiber optic • Voltage : 500VAC (power)24VDC (signal) • Electrical noise : Max 30mΩ (50rpm) • Dielectric strength : ≥1500V@50Hz (power) ≥300V@50Hz (signal) • Isolation resistance : ≥500MΩ@500VDC (power) ≥100MΩ@100VDC (signal) • Contact material : Precious metal • Housing material : Aluminium alloy ,stainless steel • IP protection grade : IP66 • Fiber channels : 2 channels (SC connector) • Fiber type : SM & MM • Wave length : 1310/1550 nm (SM) 850/1310 nm (SM)
