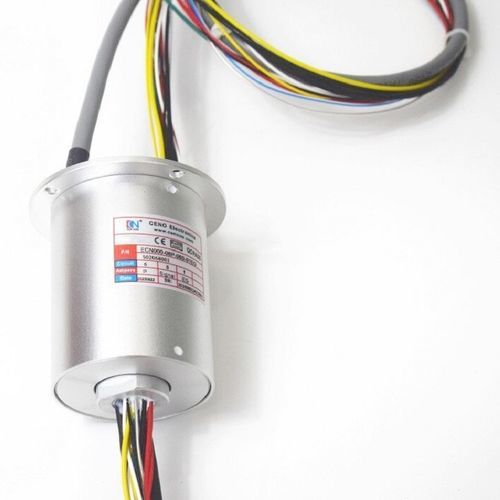

Ethernet slip ring ECN000-06P-06S-01EG

CAN busUSBindustrial

The slip ring is designed exclusively for Ethernet transmission. Compatible with data bus protocol, it can transmit Ethernet, analog/data signals, USB, RS, CANBUS, and fire wire in a continuous rotation of 360 degrees. Moreover, it can integrate signal, power and high frequency into one unit to lower the height and save the installation space. One more point lies in its high rotating precision, reliable performance, long service life and optional current. All have been certificated by the patent technology. Circuits : 2*5A,4*10A,6*signal,1*PE,1*Gigabit Ethernet Electrical noise : ≤30mΩ(50rpm) Dielectric strength : ≥1500V@50Hz(power) ≥300V@50Hz(signal) Insulation resistance : ≥500MΩ@500VDC(power) ≥100MΩ@100VDC(signal) Contact material : Precious metal Housing material : Aluminium alloy IP protection grade : IP54
