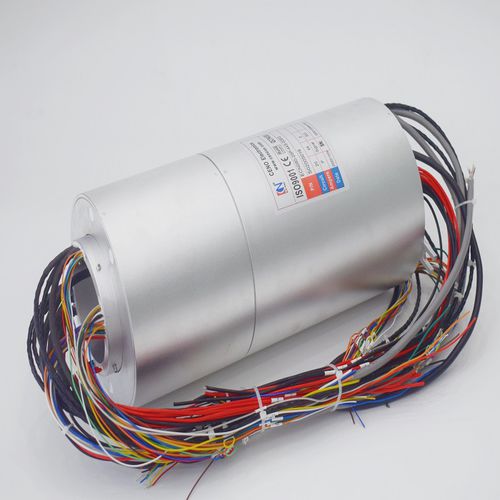

Ethernet slip ring ECN080-20P-44S-02EG

gigabit EthernetCAN busthrough-hole

It’s a multi-channel slip ring with through bore 80mm,integrate power ,switch signal,Can-bus,Servo-motor and 2 groups of Gigabit Ethernet,totally 45 channels .CENO can design such kind of multil-channel slip rings and make sure high reliability performance.Typical application including automatic winding machine,lithium battery equipment,industrial automation equipment. • Circuits & Current : 2*64A,10*10A,8*4A,16*switch signal, 4*Can,2*Servo motor,2*1000M Ethernet • Voltage : 0~380VAC / 24VDC • Electrical noise : Max 30mΩ (50rpm) • Dielectric strength : ≥1000V@50Hz (power) ≥300V@50Hz (signal) • Insulation resistance : ≥500MΩ@300VDC (power) ≥100MΩ@300VDC (signal) • Contact material : Precious metal • IP protection grade : IP51
