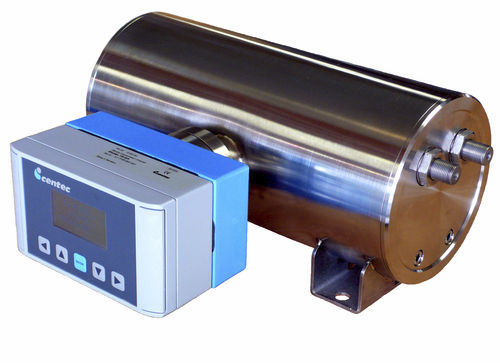

Density sensor 0 - 3 g/cm³ | RHOTEC

The Rhotec density sensor and transmitter is ideally suited for quantitative process monitoring and controlling in beverage, brewing, diary, chemical/pharmaceutical and related industries where two-component processes need to be measured accurately. The Rhotec density sensor is a highly precise means of determining the density of liquids, even under extreme process conditions. The density measurement is achieved through the use of an electro-magnetic oscillating "U"-shaped tube. As the process medium flows through the "U"-shaped tube, the oscillation frequency is measured. The oscillation frequency is affected by any changes in density and measured accordingly. The temperature dependence of density measurements is compensated through the electronic measurement of parallel PT1000 temperature elements. From these measurement signals, calculated concentrations are obtained and displayed in Mass%, Volume%, oBrix, %Extract or other density calculable quantities of the measured medium. The use of this technology with specific measurement software has a proven track record for liquids with dissolved and un-dissolved components, both organic and inorganic.
